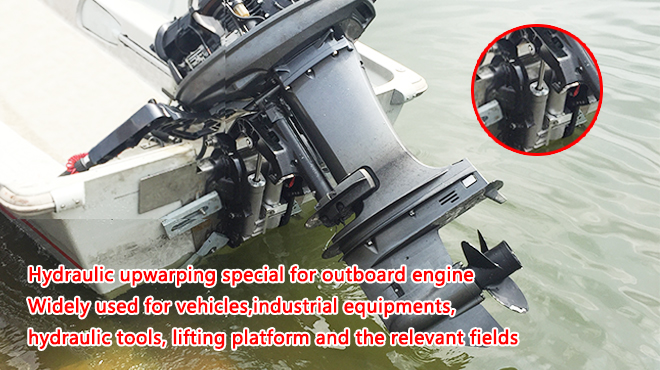

1 Hydraulic upwarping special for outboard engine;
2 Widely used for vehicles,industrial equipments, hydraulic tools, lifting platform and the relevant fields;
3 Bidirectional power, not only lifting, but falling down both with strong power;
4 sensitive temperature control device, protect the motor better.
5 Making according to customer demand is available
Product Name | Two function of Jack |
Voltage | DC 12V |
Max.Current | 35A |
Jacking Force | 2T |
Pull Back | 1.2T |

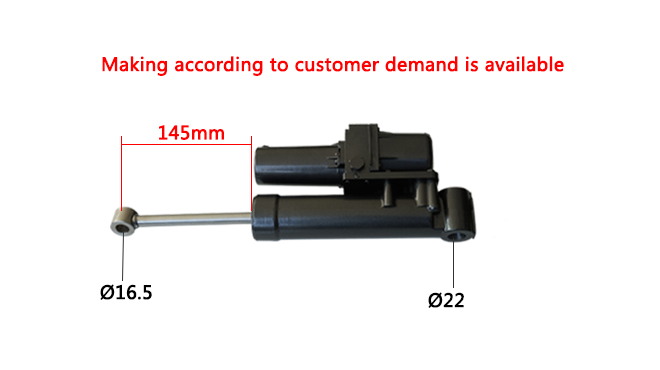

Max.Lifting Distance | 145mm |
Lifting Speed | 4.5-6.5mm/s |
Center Distance | 268mm |
Top Mounting Hole | Ø22.0 |
Bottom Mounting Hole | Ø16.5 |
Diamention | 303*149*82mm |
Weight | 3.8Kg |
Fully sealed waterproof, temperature control 120℃
